The useful question changed from how to make a perfect scan to what the next operation actually needed. This is a process record from that change, rather than a scanner accuracy benchmark.

The first example had three views of the same mechanical part. I said the edges had not scanned well because they were a straight profile down. The captures still showed the broad faces and two raised circular features. The discussion proposed rebuilding the simple walls from a measured profile instead of asking a hole-filling operation to invent them.

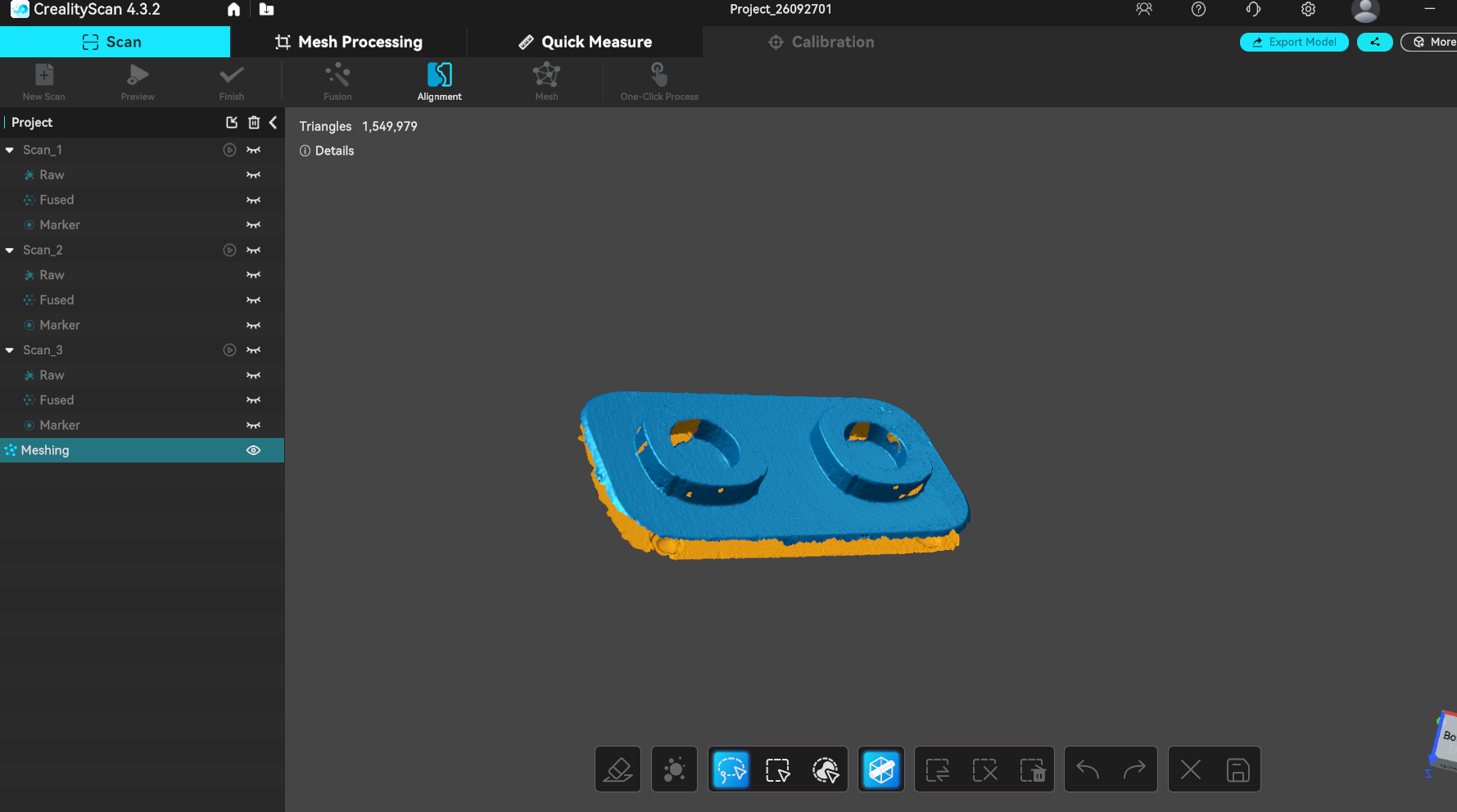

Alignment became a concrete milestone. On September 28 I reported that the scans were aligned and asked how to send the result to Shapr3D so I could model by tracing it. The supplied CrealityScan screenshot shows three scan entries and a selected combined mesh containing 1,549,979 triangles. It documents a usable intermediate result; it does not establish the dimensional accuracy of the alignment.

The proposed next step was to export the combined mesh and use it as an underlay while making new sketches and solids. Shapr3D's documentation confirms that imported meshes can serve as references. It also distinguishes mesh bodies from native CAD geometry: a Boolean operation on a mesh does not turn it into an editable parametric solid. That distinction kept the reconstruction goal realistic.

Scale and orientation need their own checks. STL does not carry a unit definition, so the import should be checked against a known measurement on the physical object before dimensions are derived from it. The discussion suggested tracing clean lines and arcs, then checking thickness, hole diameters, and feature spacing on the part. Those checks were proposed; no measurement table was recovered for this example.

Repair depends on the destination. For a reference mesh, the cold-smoker cap later demonstrated why missing, irrelevant surfaces could remain missing. MeshLab simplification was suggested only if the reference was too heavy to work with. A separate October 10 ice-shovel project did pursue a closed, smoothed mesh and saved a repaired result. These are different requirements: useful tracing geometry and a checked printable surface should not be treated as the same milestone.

Calibration remains an open documentation item in this case study. The recovered sessions do not provide a Pika calibration log, result, or repeatability test, so this record claims none. The official Pika support page is the reference for the device's current instructions. A future comparison needs the calibration result, scanning mode, object measurements, and a recorded comparison against those measurements before it can support an accuracy claim.
